Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

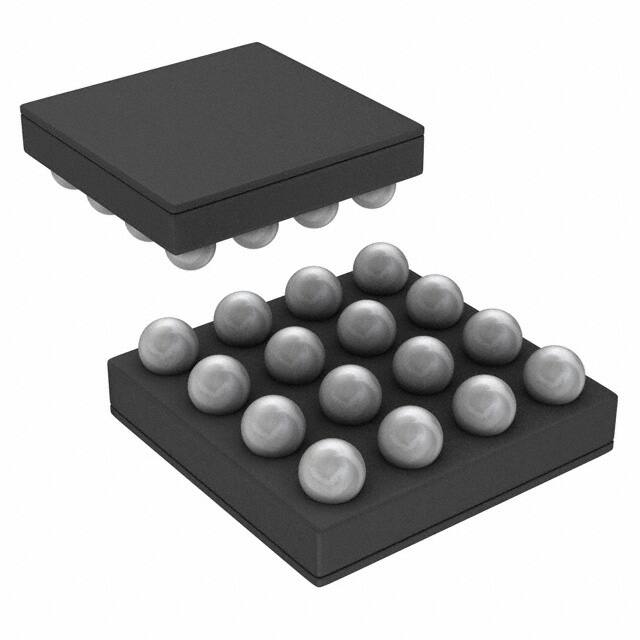

Package / Case

16-WFBGA, DSBGA

Number of Pins

16

Power - Output (Max)

2.5W

Current - Supply (Nom)

5.2mA

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Series

Boomer®, PowerWise®

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

Termination

SMD/SMT

ECCN Code

EAR99

Type

Class D

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Supply

2.4V~5.5V

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.5mm

Base Part Number

LM48411

Output Type

2-Channel (Stereo)

Power Supplies

3.6V

Number of Channels

2

Output Power

2.5W

Common Mode Rejection Ratio

64 dB

Supply Type

Single

Voltage Gain

24dB

Power Supply Rejection Ratio (PSRR)

78dB

Max Output Power x Channels @ Load

2.5W x 2 @ 4 Ω

Voltage - Supply (Max)

5.5V

Harmonic Distortion

10%

Load Impedance

8Ohm

Features

Depop, Differential Inputs, E2S, Short-Circuit Protection, Shutdown

Height

675μm

Length

2.5mm

Width

2.3mm

Thickness

675μm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
